The Challenge: A Shifting Foundation Wall in a Newly Purchased Home
Angel Cruz purchased a home in Leesburg, Virginia, and immediately noticed the front foundation wall had shifted inward. As a new homeowner, she wanted a professional inspection to understand the extent of the foundation wall movement before it became a larger structural problem.
Here is what was documented:

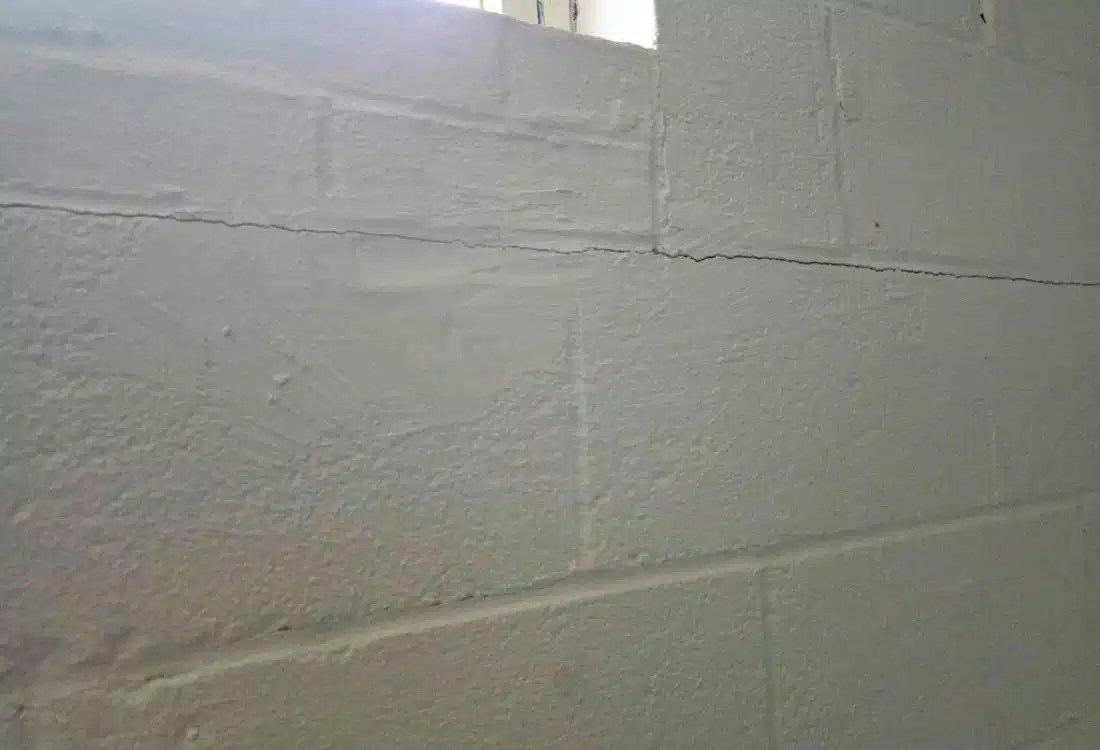

- Horizontal crack running the full length of the interior basement wall.
- Visible foundation wall inward movement — the wall had shifted out of plumb.
- Deteriorated mortar joints and moisture staining were visible once the drywall was removed.
These are common foundation wall movement signs.
Our Assessment: Lateral Soil Pressure Causing Wall Displacement
After inspecting the home, the LUX team identified the root causes:
- Lateral soil pressure was pushing against the front CMU wall, causing it to bow and crack at mid-height
- The horizontal crack pattern confirmed classic wall displacement due to hydrostatic and soil pressures — requiring immediate structural stabilization.
Based on the inspection findings, LUX recommended a fully engineered wall anchor system—one that would permanently stop foundation wall movement and soil pressure issues, and bring the home up to code with a permitted, inspected repair backed by a licensed engineering plan.
The Solution: Wall Anchor System Foundation Repair
LUX executed a comprehensive engineered foundation wall repair using a wall anchor system designed and permitted in accordance with Virginia building regulations.

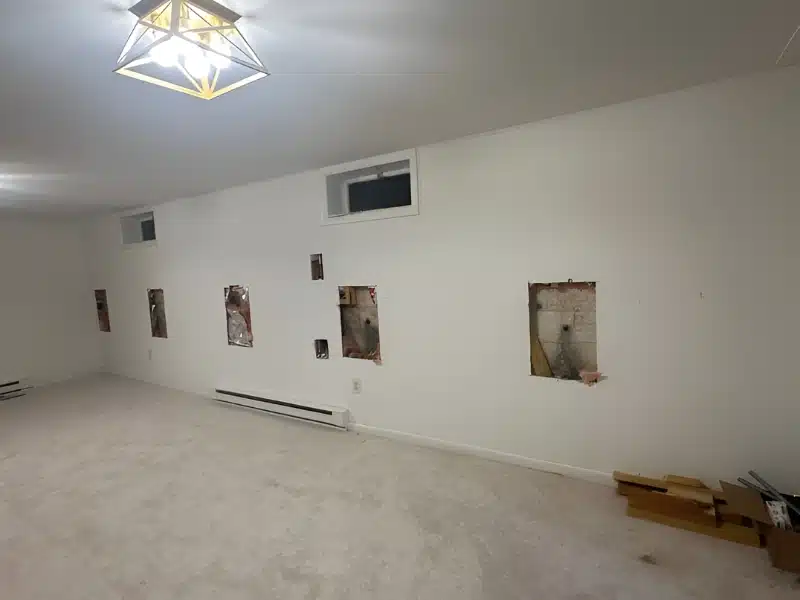

Step 1: Drywall Access Opening & CMU Drilling
At each of the nine anchor locations, drywall was carefully cut open to expose the CMU foundation wall behind. A hole was then drilled through the concrete block wall at the precise location specified in the engineering plan, creating the opening for the anchor rod to pass through from the interior to the exterior trench.

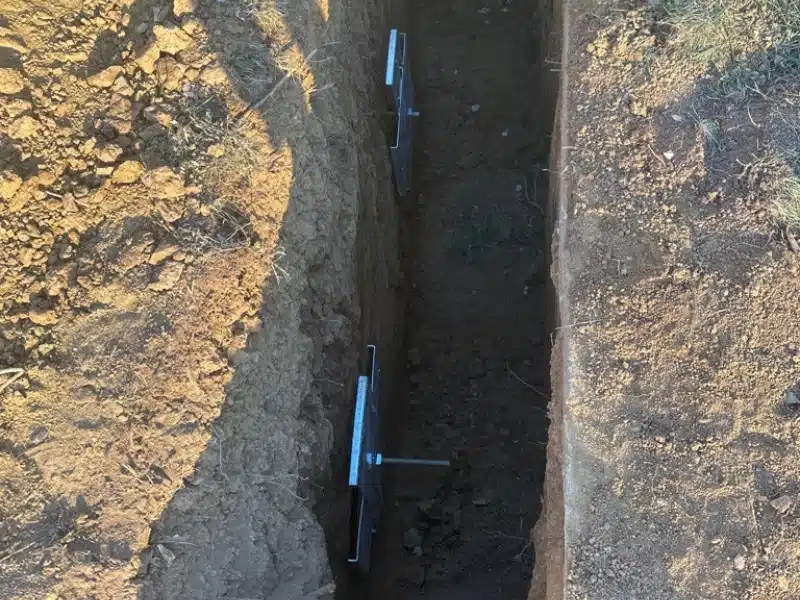

Step 2: Earth Anchor Plate & Rod Installation
A trench approximately 2 feet wide and 3–6 feet deep was excavated along the front of the home, extending 10–12 feet out from the foundation wall.
Steel earth anchor plates were then set into the stable, undisturbed soil at the base of each trench location, serving as the deadman anchor point that pulls and holds the foundation wall in place.

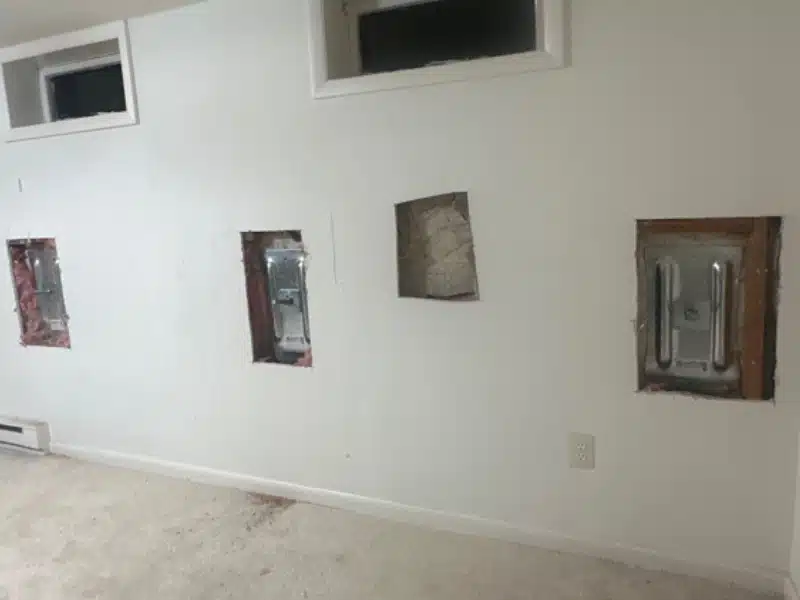

Step 3: Interior Wall Anchor Plate Installation
Nine Grip-Tite wall anchor plates were installed through the interior CMU foundation wall. Drywall was cut at each anchor location, a steel rod was threaded through the block wall connecting the interior wall plate to the exterior earth anchor, and proper torque was applied to stabilize the wall.

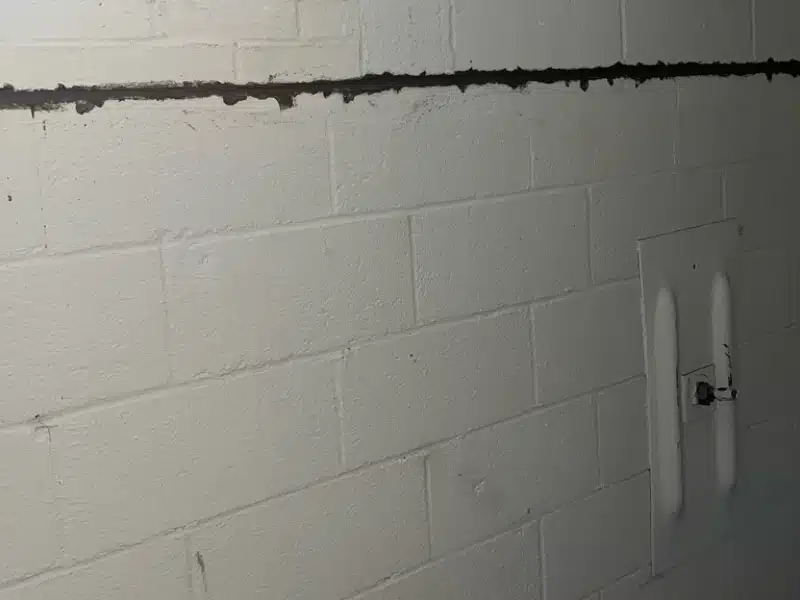

Step 4: Crack Repointing
Horizontal foundation cracks were repointed with structural-grade mortar, including warranty repointing of cracks from prior LUX work. This sealed the wall against water infiltration through foundation cracks and restored the surface finish.

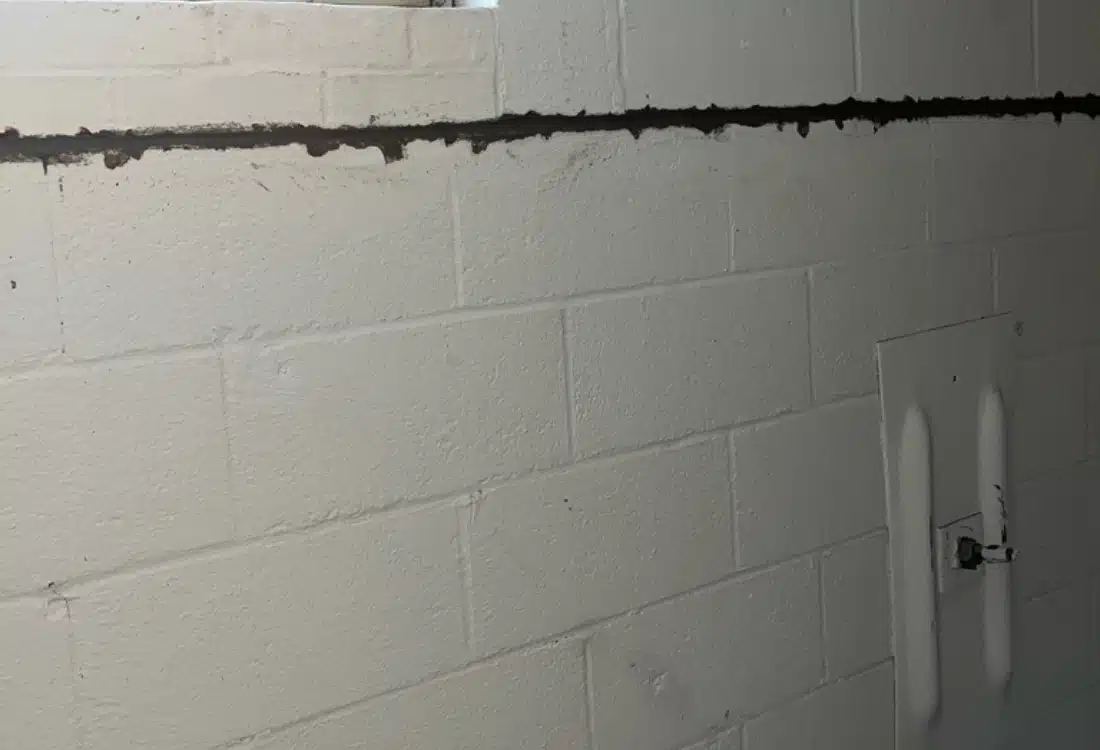

The Result: A Fully Stabilized, Permitted, and Protected Foundation
The completed wall anchor system foundation repair transformed Angel’s newly purchased Leesburg, VA home from a structurally compromised property into a fully stabilized, code-compliant, and protected investment.
✅ Stabilized foundation wall movement.
✅ Reinforced structural integrity of the home.
✅ Prevented future bowing or shifting.
✅ Restored homeowner confidence and peace of mind.
With the right foundation repair services, Angel’s home is now structurally sound, fully permitted, and protected — a complete turnaround from the shifting foundation wall she inherited when she first purchased the property.
