The Challenge: Foundation Shifting and Cracks at Rileyville Church

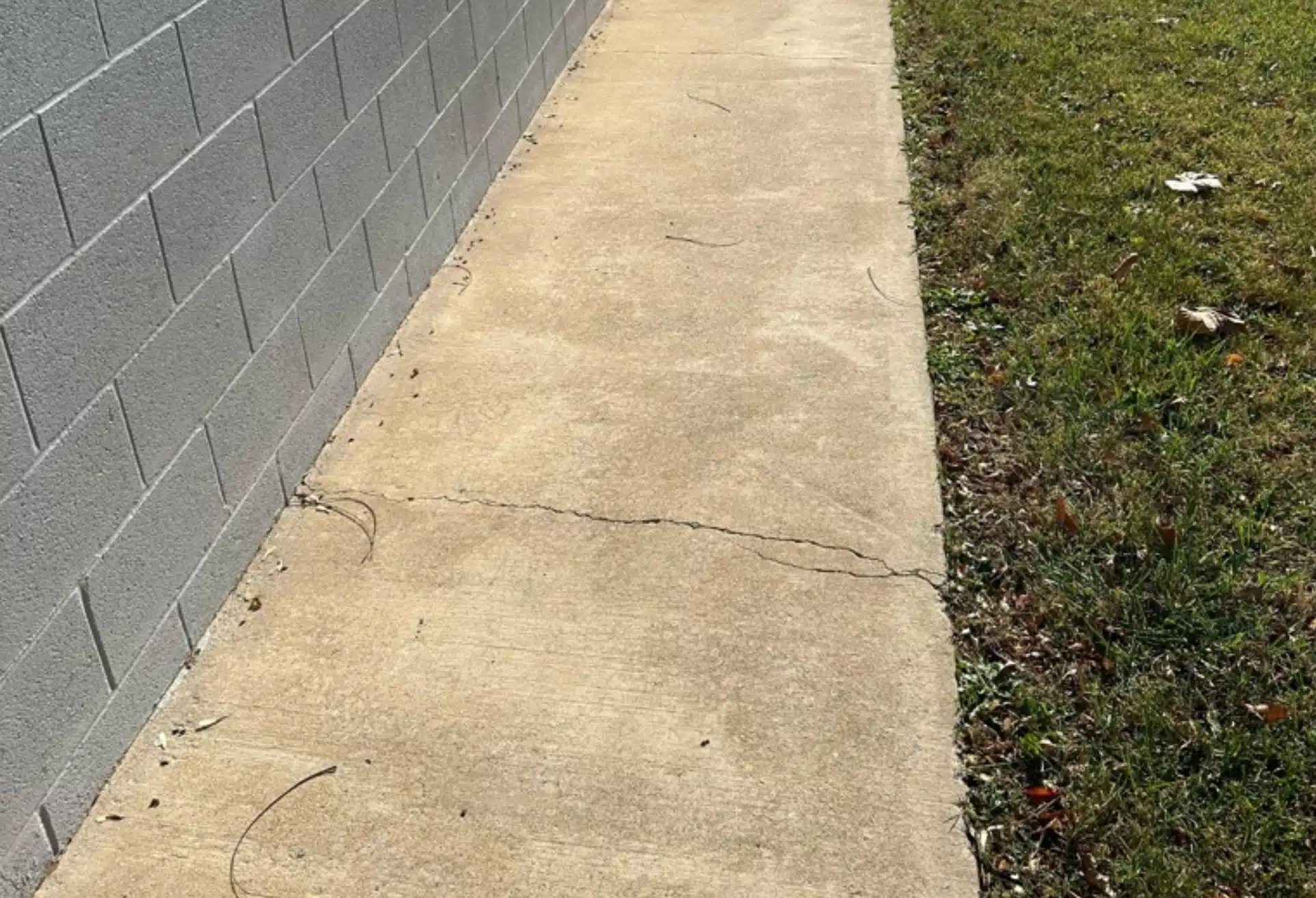

Rileyville Church’s foundation walls were showing signs of shifting and settling, causing visible cracks in the walls and floor. The church building’s foundation walls were at risk, with an uneven sidewalk slab contributing to the instability. This posed a safety hazard to the church’s congregation and could lead to more severe damage if not addressed.
The church’s leadership recognized the need for professional foundation repair to address the shifting foundation issue and ensure the building’s safety. They needed a solution to stabilize the shifting foundation walls and prevent further deterioration.
Ignoring these foundation shifting issues could lead to:
✅ Increased Risk of Structural Failure – Shifting foundations can weaken load-bearing walls, leading to potential structural collapse.

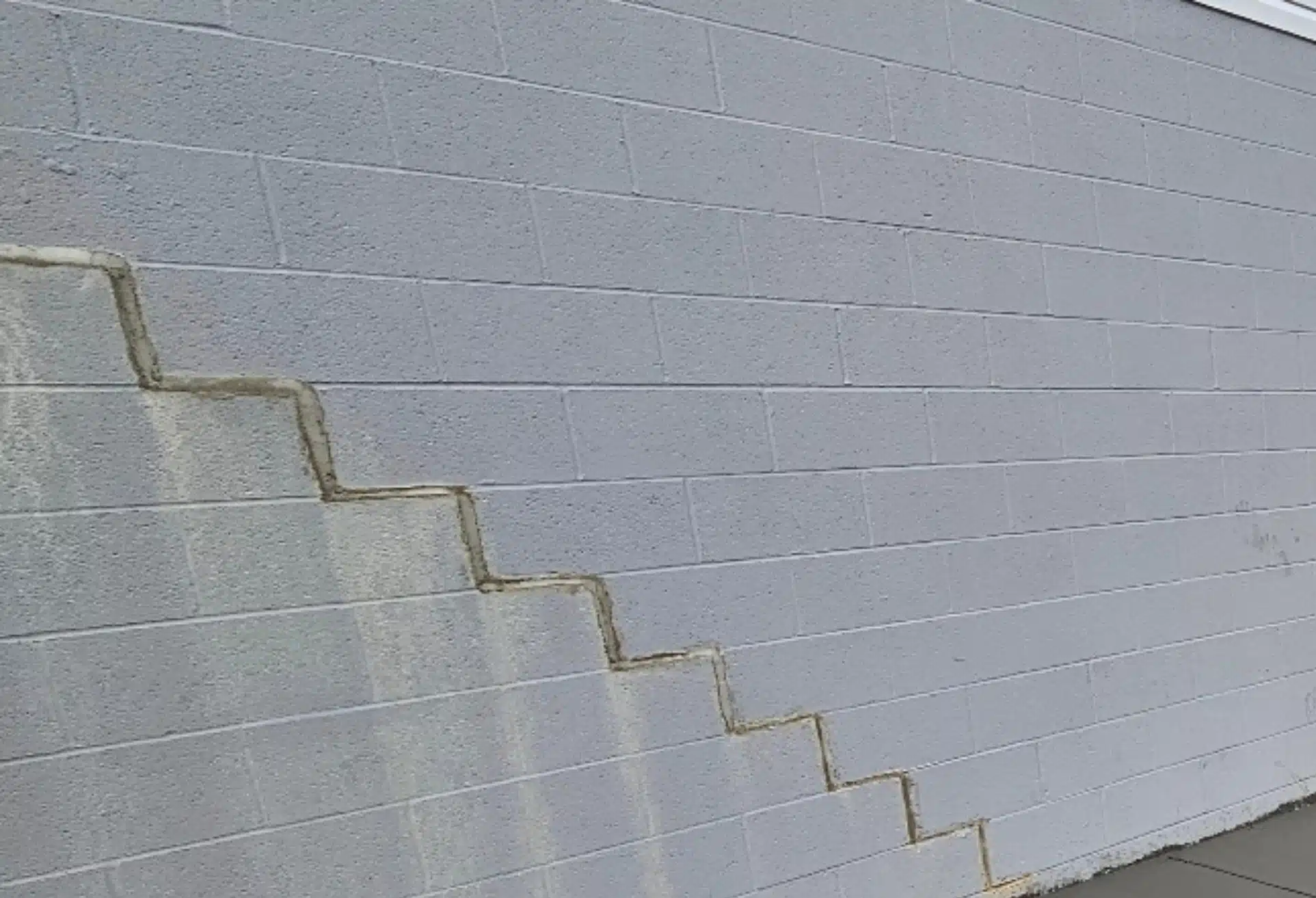

✅ Cracks and Movement in Foundation Walls – Ongoing shifting caused visible cracks in the foundation, compromising the integrity of the walls and floors.
✅ Safety Hazards for the Community – The building’s safety was becoming more questionable with each passing day as the shifting worsened.
✅ Water Damage Risks: Shifting can lead to gaps in the foundation, allowing water to seep in, increasing the risk of mold and further damage.
✅ High Repair Costs: Left unchecked, shifting foundations can lead to even more expensive repairs as the damage progresses.
Rileyville Church needed more than a quick fix; they required a permanent solution to halt the foundation shifting and restore stability to the entire structure. That’s when they contacted LUX Foundation Solutions for help.
The Solution: Push Piers Installation & Slab Replacement to Reinforce the Foundation
After a detailed inspection, our team at LUX Foundation Solutions recommended a two-step approach: installing push piers and replacing the damaged slab. This method addressed the foundation shifting and ensured the building’s long-term stability.
Here’s how we completed the project:
Step 1: Slab Removal & Foundation Cracks Repair
- We started by addressing the shifting of the foundation by carefully removing the damaged slab. This 56-square-foot section had been impacted by the shifting foundation and required replacement for stability.
- During this process, we also caulked the visible cracks in the foundation walls to prevent any moisture infiltration and further damage. This concrete caulking helped ensure a solid, dry surface for the new slab installation.

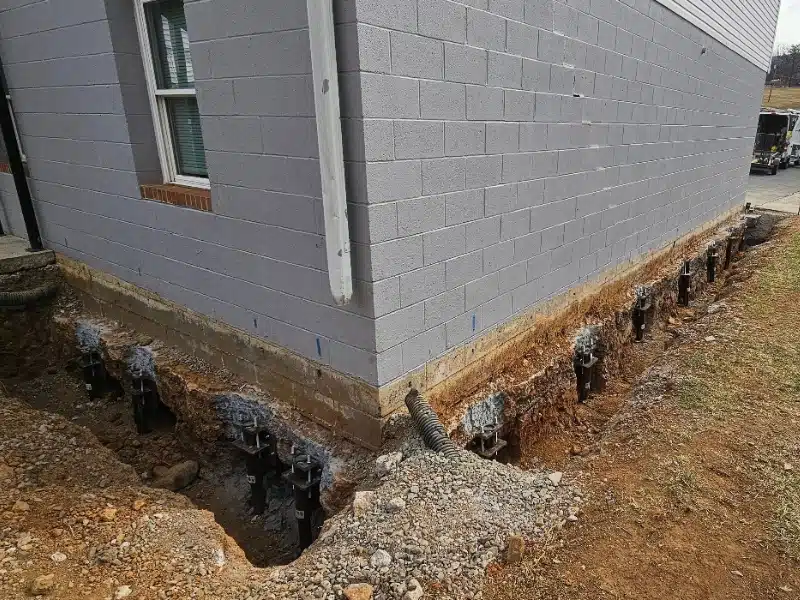

Step 2: Push Piers Installation
- Next, we installed 14 push piers beneath the foundation. These piers were strategically placed to stabilize the shifting foundation and prevent further movement. By transferring the weight of the building to deeper, more stable soil layers, the push piers halted the shifting and ensured that the foundation would no longer settle.

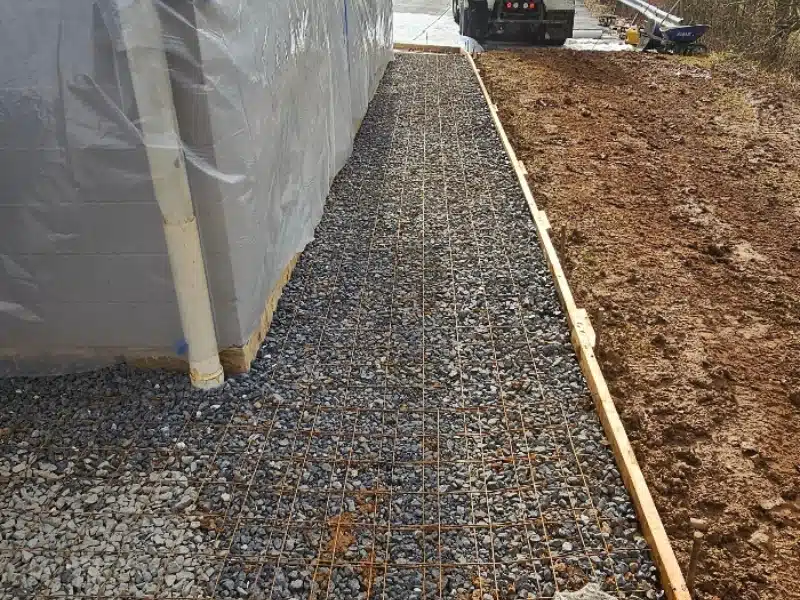

Step 3: Rebar Installation for Slab Form
- Once the foundation was stabilized, we installed rebar in the formwork where the new slab would be poured. The rebar reinforcement is crucial for providing strength and flexibility to the new slab, ensuring it can handle the structural load and prevent future cracking.

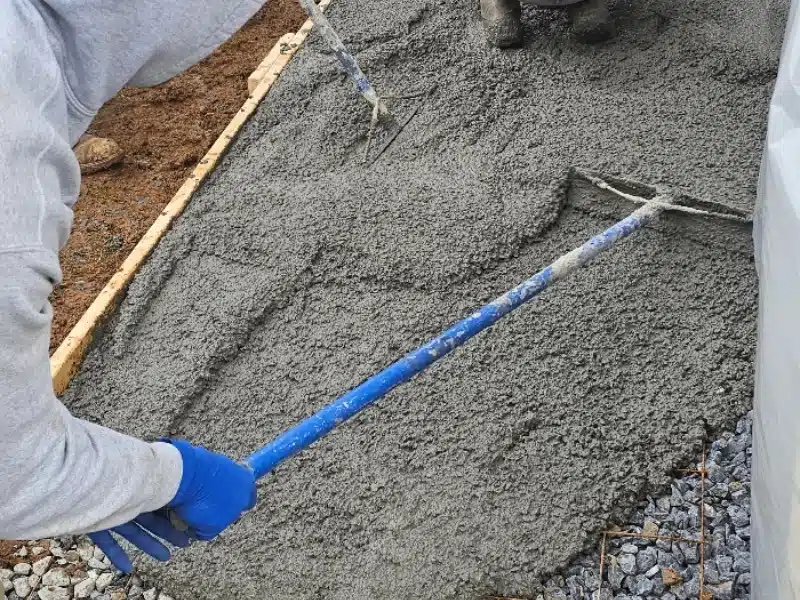

Step 4: Slab Installation
- With the rebar in place, we then began the process of pouring a new slab. The new slab was designed to support the foundation and reinforce the structure’s overall stability, ensuring that the building would be level and secure for years to come.
Step 5: Final Adjustments & Curing
- Once the slab was poured, we made final adjustments to ensure the surface was perfectly level and the foundation was aligned correctly. We allowed time for the slab to cure, providing maximum strength and durability. Afterward, the church’s foundation was fully restored, without shifting or instability.

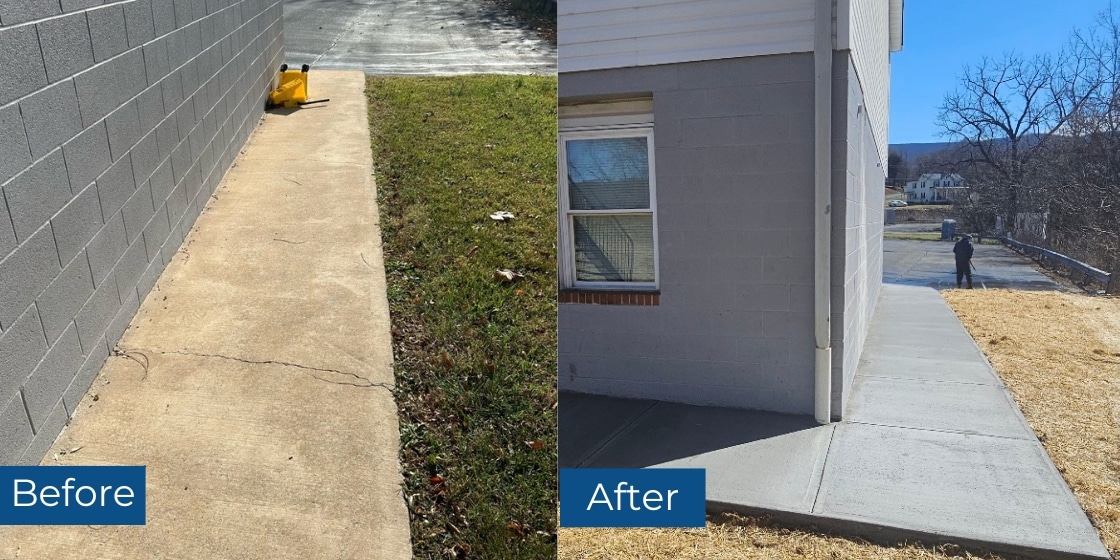

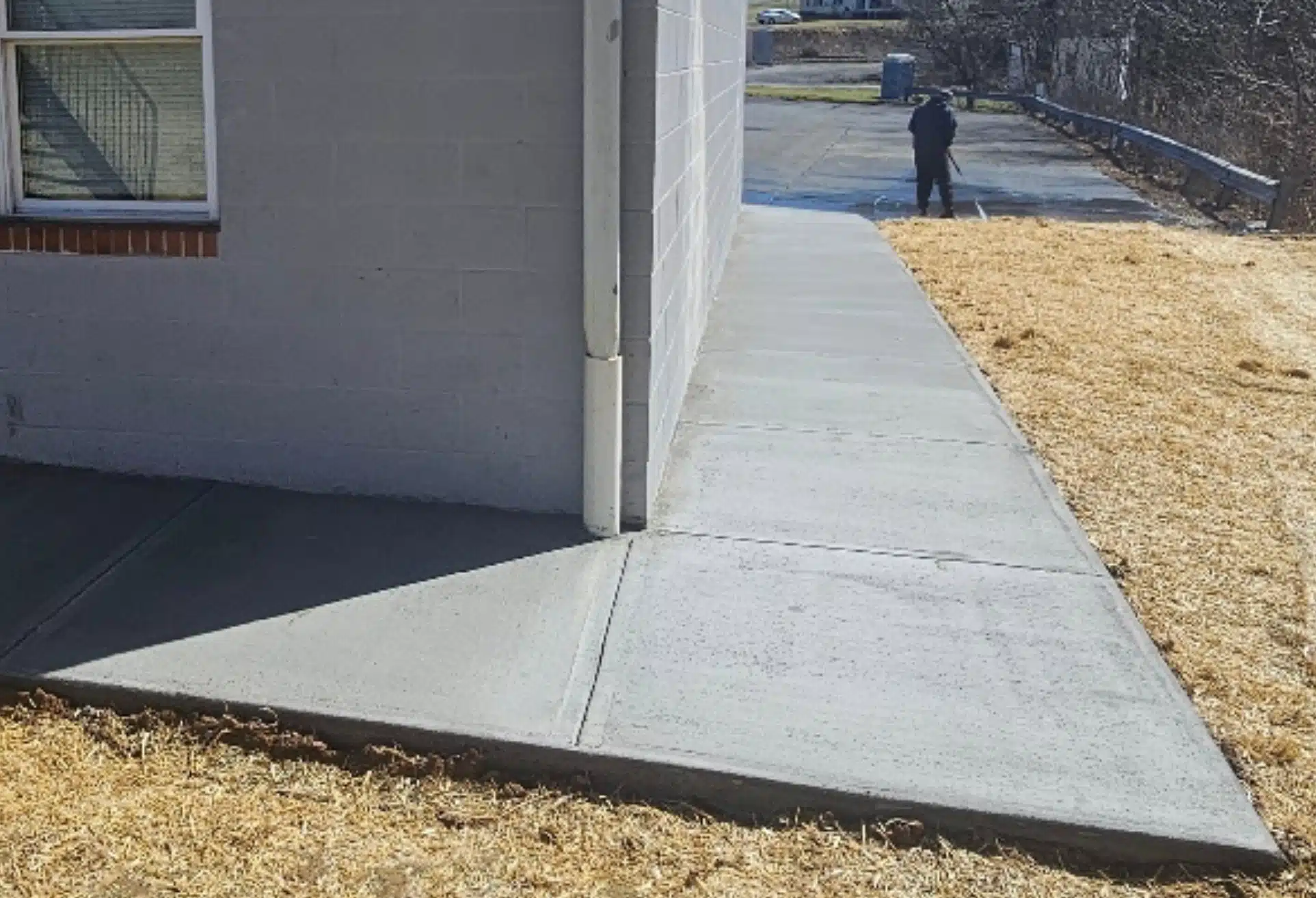

The Outcome: A Secure, Stable Foundation for Rileyville Church
With the push piers and slab replacement complete, Rileyville Church has a stable foundation. The shifting foundation issue is resolved, ensuring the building is safe and functional for years to come. Here’s what the church gained from the project:
✅ Repaired Foundation Walls: The push piers effectively stabilized the foundation walls, preventing further shifting and cracks.
✅ Improved Structural Integrity: The new slab reinforced the foundation, providing added support to the overall structure.
✅ Safety and Security: The building is now free from the risk of foundation failure, ensuring safety for the congregation.
✅ Preserved Value: Addressing the foundation shifting preserved the church’s value, protecting it from future structural damage.
✅ Peace of Mind: The church leadership can now focus on their mission, knowing the building is secure and stable.
