The Problem: High Humidity and Sweating Ducts in the Crawl Space
Michael, a homeowner in Luray, VA, reached out to LUX Foundation Solutions with a persistent problem he couldn’t ignore: his crawl space had become a source of high humidity and moisture throughout his home.
Here’s what he was experiencing:
- HVAC ducts were visibly sweating — condensation forming on the outside of the ductwork.
- Humidity levels inside the crawl space were consistently elevated and uncontrolled.
This type of moisture buildup can lead to serious problems inside crawlspaces, including mold growth, wood rot, insulation damage, and poor indoor air quality throughout the home.

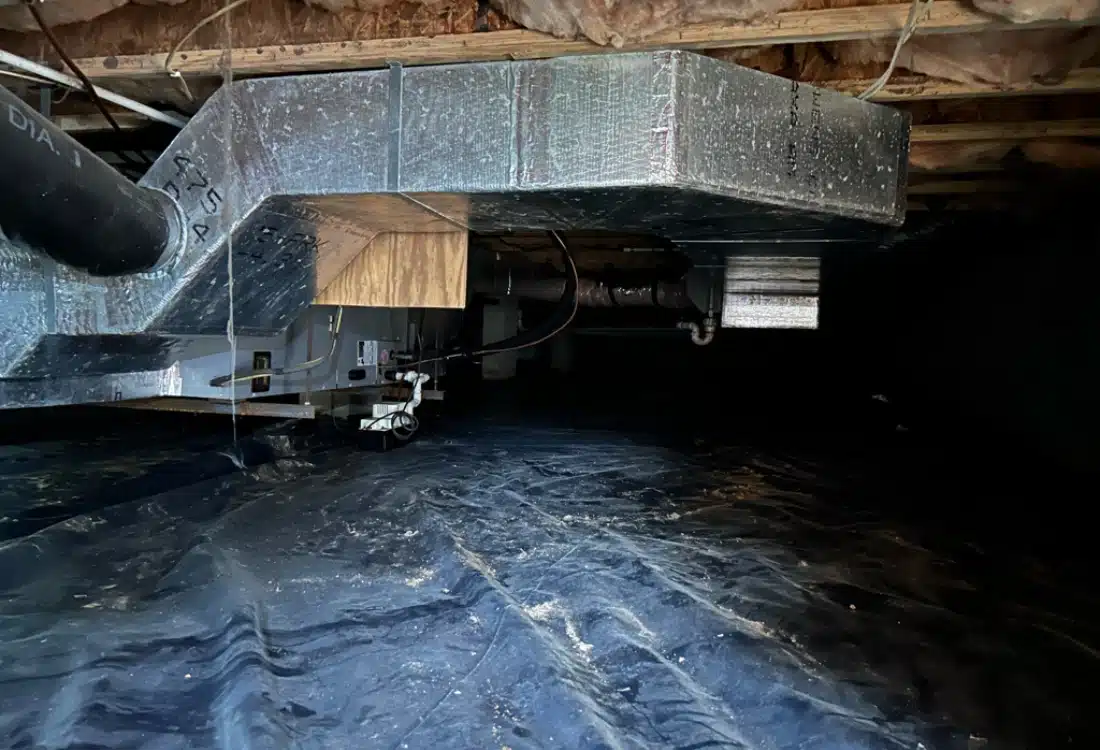

Our Assessment: An Unsealed, Unprotected Crawl Space
After inspecting the crawl space, the LUX team identified the root causes driving the moisture problem:
- Open crawlspace vent that actively draws in humid outdoor air from Virginia, with no way to regulate it.
- Exposed soil that releases ground moisture into the space.
- Torn vapor barrier system.
- No humidity control equipment installed.
- Structural floor joists and columns were at ongoing risk of wood rot and structural instability from prolonged moisture exposure.
- The HVAC system was operating in an uncontrolled humid environment, causing the duct to sweat.
Without correction, these conditions could continue to increase moisture levels and accelerate structural damage to the home.
These conditions indicated the need for a complete sealed crawl space system: encapsulation, moisture control, wall insulation, and a proper access point.
Solution: Crawl Space Encapsulation System
LUX installed a complete four-part crawl space encapsulation system designed to permanently seal the space from moisture intrusion and bring humidity under control.

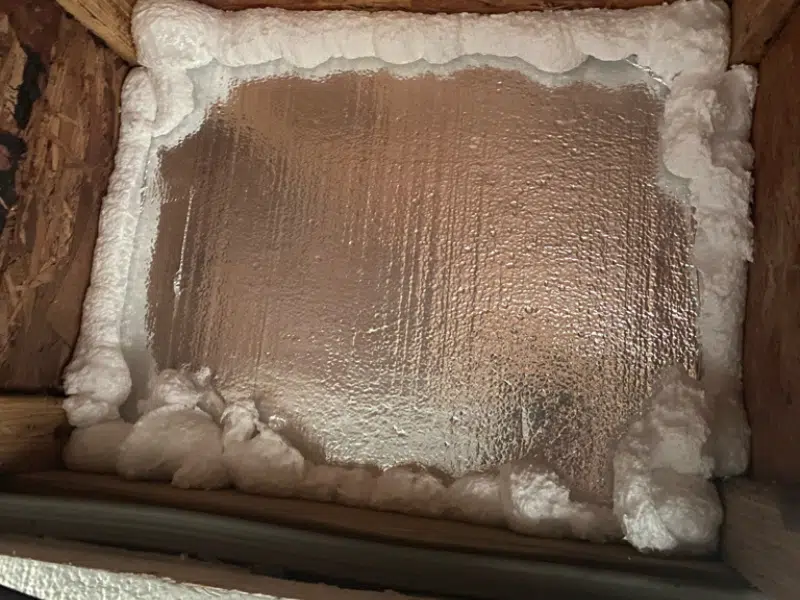

Step 1 — Crawlspace Vent Sealing
All crawlspace vents were sealed from the inside using rigid foam insulation cut to fit each opening, secured in place, and air-sealed around the perimeter with spray foam. This eliminated the primary source of humid outdoor air entering the crawl space.

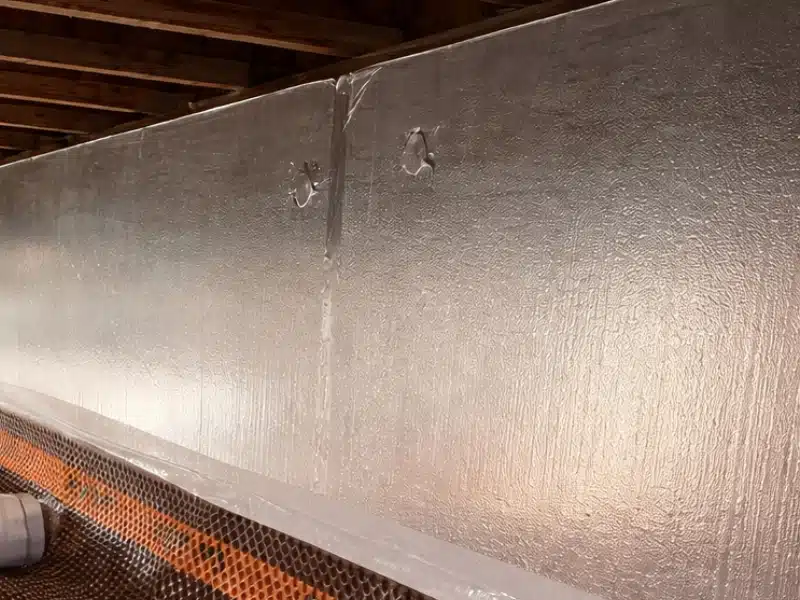

Step 2: Radiant Barrier Crawl Space Insulation Panels
Poly-iso aluminum-faced radiant barrier insulation panels were mechanically secured to the exterior foundation walls throughout the crawl space. All joints were taped and sealed, creating a continuous thermal and moisture barrier across the entire wall surface.
This layer prevents heat transfer through the foundation walls and adds a second line of defense against moisture intrusion — further stabilizing the interior environment.

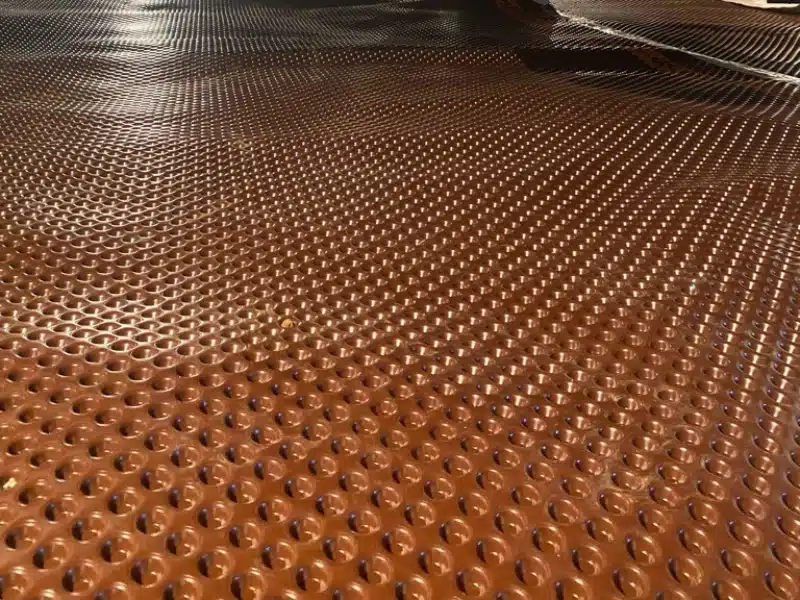

Step 3 — Drainage Mat Installation
A Delta-MS dimple mat was installed across the entire crawl space floor prior to the vapor barrier. The dimpled surface creates a gap between the ground and the liner above, allowing any water intrusion to drain away freely rather than pooling beneath the barrier.
All seams were taped and overlapped for complete floor coverage. This layer protects the vapor barrier from puncture and ensures the system performs even if minor water infiltration occurs.

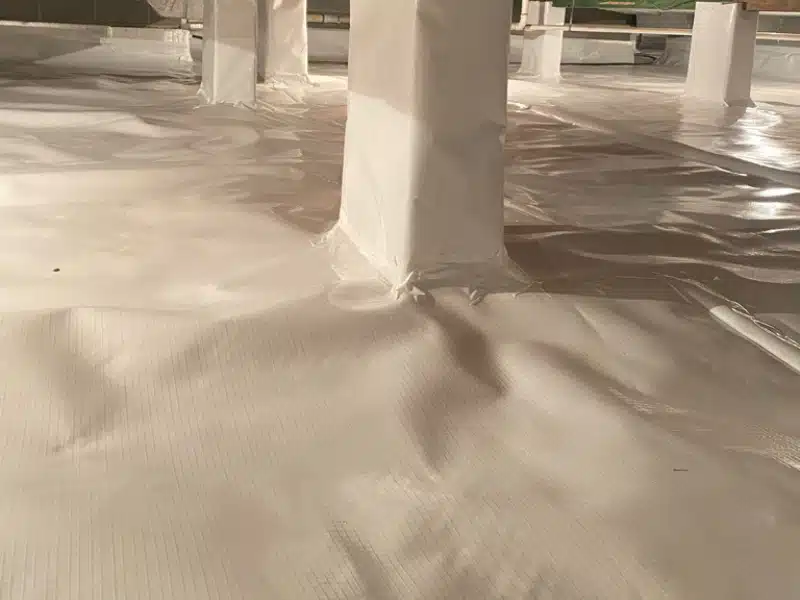

Step 4: Crawl Space Vapor Barrier Installation
A heavy-duty 20 mil Class A fire- and moisture-rated vapor barrier was installed across the entire crawl space floor to prevent ground moisture from entering.
The system included:
- Overlapped and sealed all vapor barrier seams.
- Wrapped every structural column to ensure complete coverage with no gaps or pathways for moisture.
This sealed barrier prevents ground moisture from entering the crawl space environment.

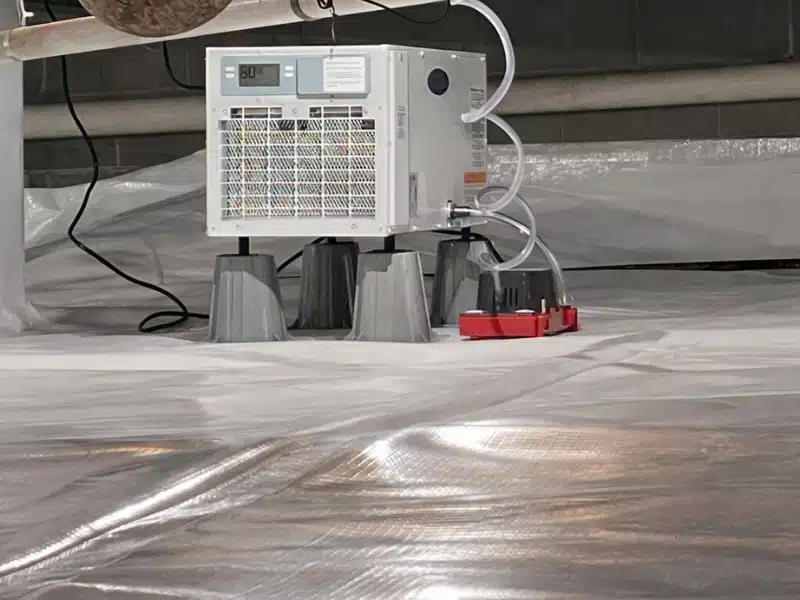

Step 5 — Crawl Space Dehumidifier Installation
A crawlspace dehumidification system was installed to maintain controlled humidity levels inside the encapsulated space.
The system:
- Automatically removes excess moisture from the crawl space air.
- Connects to the drainage system, sump system, or a condensation discharge line.
- Uses corrosion-resistant aluminum coils designed for use in crawl spaces.
By actively controlling humidity, the unit helps prevent:
- Mold growth
- Structural wood rot
- Termite activity
- Musty crawl space odors

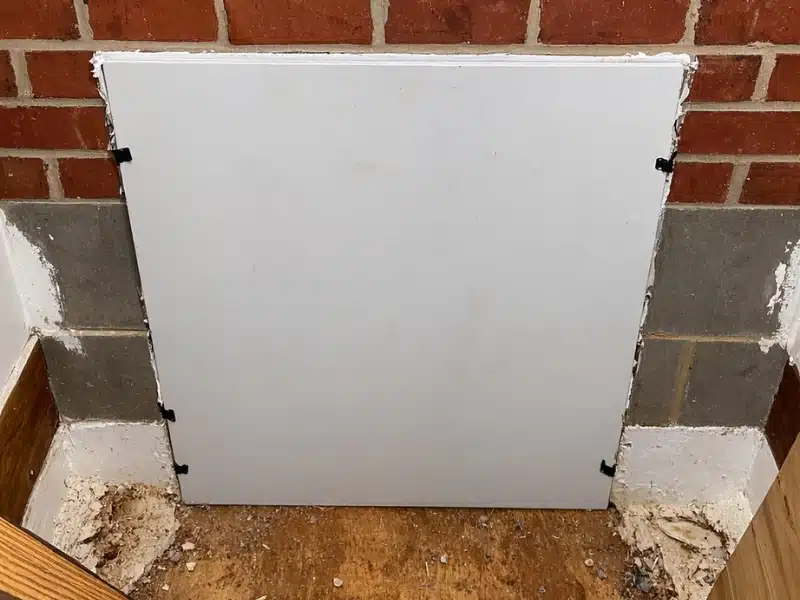

Step 6 — Crawl Space Door Replacement
The existing crawlspace access door and framing were removed and replaced with a properly sealed access.
Our team installed:
- New pressure-treated framing secured to the foundation.
- An airtight cellular PVC crawl space door.
- Standard mounting hardware and weather-resistant materials.
The new door creates a proper sealed entry point — ensuring the encapsulation system performs as intended without outdoor air bypassing the sealed vents through an unprotected access opening.

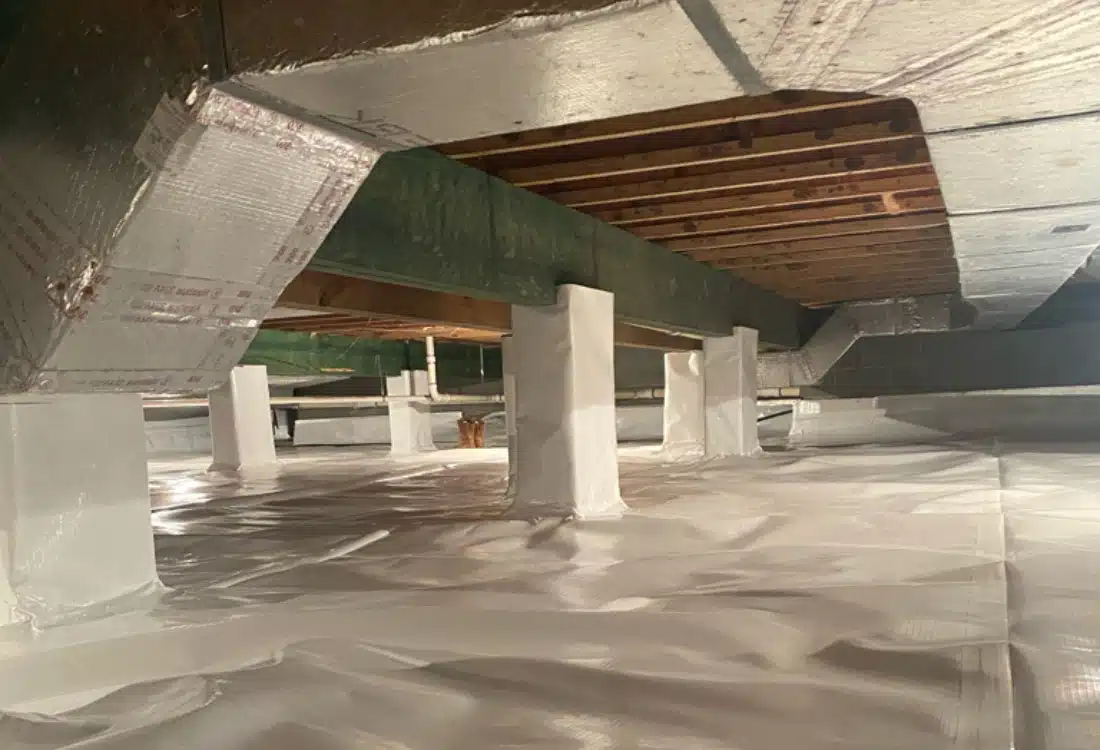

The Result: A Dry, Sealed, and Controlled Crawl Space Environment
The completed encapsulation system transformed Michael’s crawl space from a humid, deteriorating environment into a clean, controlled, and fully sealed space.
✅Duct sweating eliminated — HVAC system no longer exposed to uncontrolled moisture
✅Humidity actively controlled by the dedicated dehumidifier unit
✅Foundation walls fully insulated with radiant barrier panels
✅All columns wrapped and floor covered with a sealed 20 mil vapor barrier
✅Crawl space entry sealed with a new air-tight PVC access door
✅Home protected against mold, structural wood rot, and long-term moisture damage
With the crawl space fully sealed and humidity-controlled, the homeowner now has a healthier, more stable foundation environment.
What the Client Had to Say
Need Crawl Space Repair in Luray, VA?
If you’re experiencing high humidity, sweating ducts, or musty odors in your crawl space, it may be time for a professional inspection.
LUX Foundation Solutions provides crawl space repair services including encapsulation and moisture control solutions, throughout Luray, VA, and surrounding Shenandoah Valley communities.
Schedule your free crawl space assessment and estimate to protect your home and improve indoor air quality.
