The Problem: Foundation Wall Cracks Found During a Home Inspection
Herberth and Jessica were preparing to purchase their home in Winchester, VA when a home inspection uncovered foundation wall cracks in the basement. Before moving forward with the purchase, they wanted to understand what was causing the damage and whether the wall could be repaired safely.
During our inspection, we found several signs that the foundation wall had experienced movement over time, including:

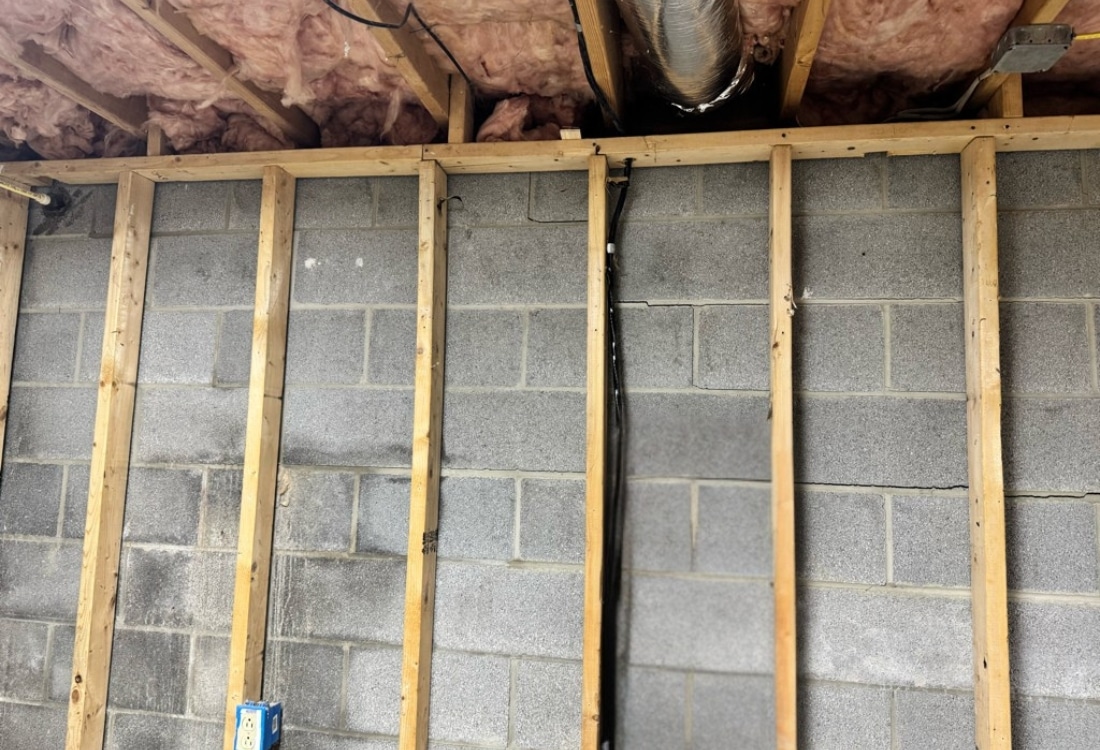

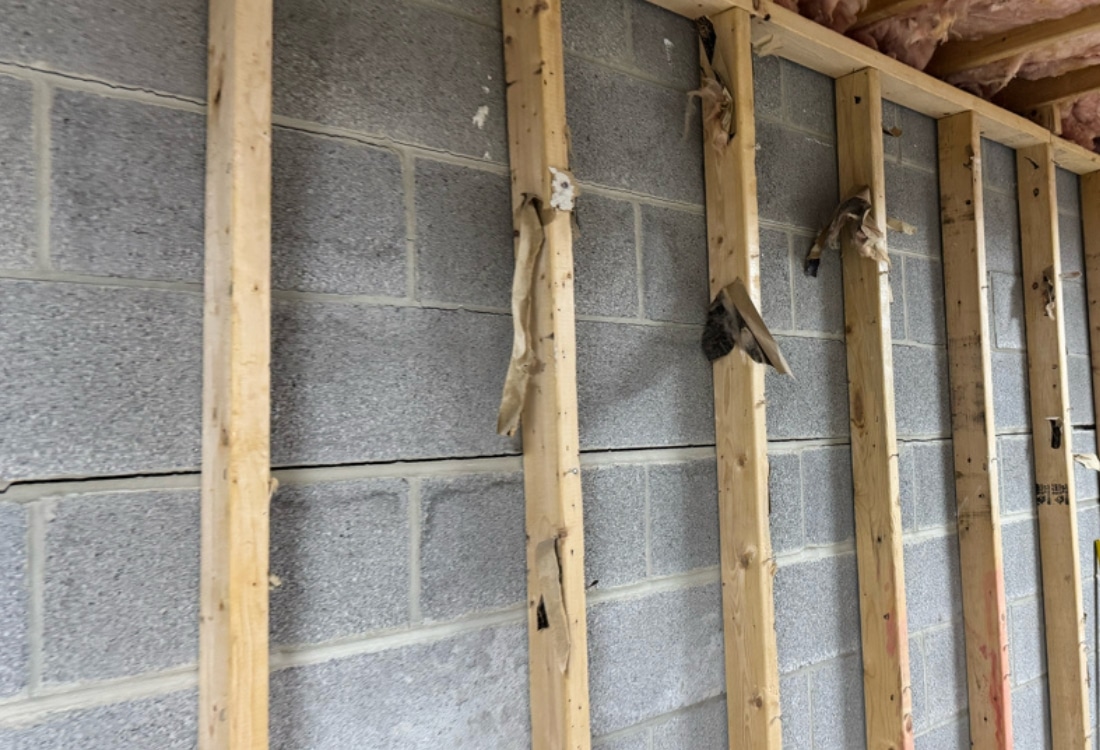

- Horizontal cracking along the interior concrete block foundation wall.
- Stair-step cracking on the exterior stucco, aligning with the interior crack.
These are the foundation wall crack warning signs that should never be ignored. Throughout Winchester and the surrounding Shenandoah Valley, changing soil moisture and seasonal expansion can place pressure against foundation walls, causing cracks and gradual inward movement if left untreated.
Before deciding how to repair cracks in foundation walls, it’s important to determine whether the wall is cracked or beginning to show signs of bowing.
Our Assessment: A Short Downspout and Lateral Soil Pressure Against the Foundation Wall
The cracks identified during the home inspection were not random. After inspecting both the exterior and interior of the home, our team identified conditions that pointed to ongoing pressure against the foundation wall.
Our assessment revealed:

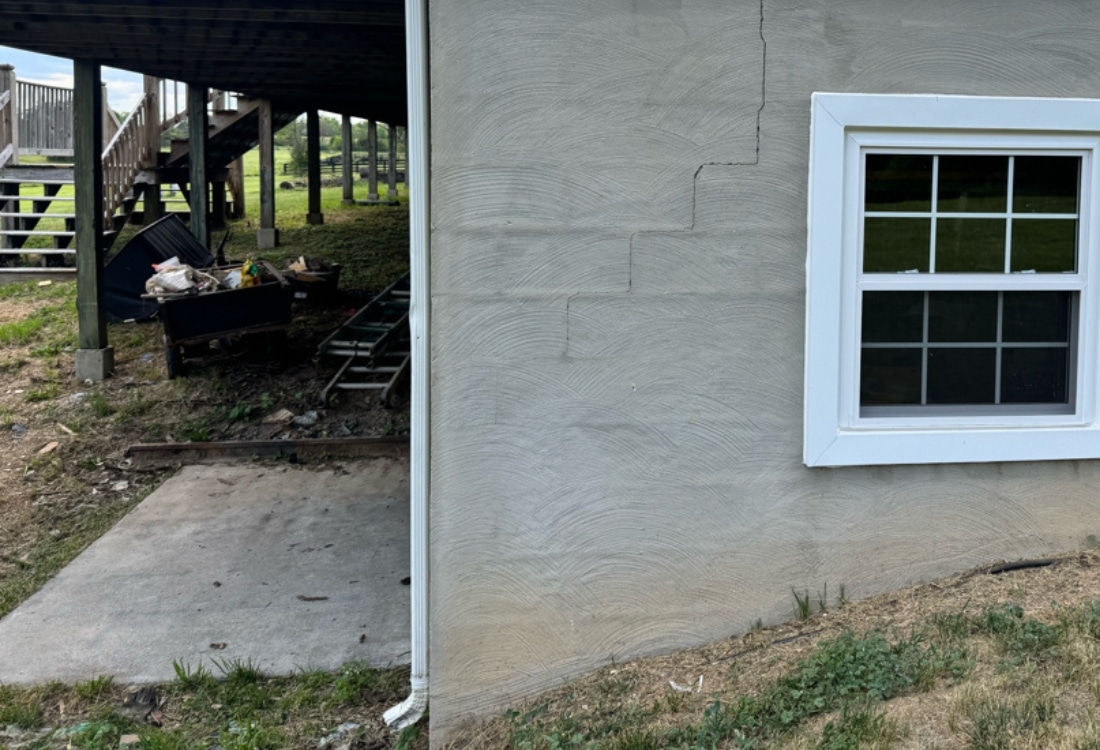

- Roof water was being discharged at the foundation corner. One of the downspouts was discharging roof water directly beside the foundation, allowing rainwater to soak into the surrounding soil instead of being carried farther away.
- The crack extended through both the interior concrete block wall and the exterior stucco, confirming the damage affected the wall itself rather than only the exterior finish.
- The crack extended through the foundation wall, making it clear that a surface patch alone would not address the underlying structural concern.
When a downspout discharges roof water too close to the home, the surrounding soil can remain saturated for extended periods. Over time, this added moisture increases lateral pressure against foundation walls and can contribute to cracking.
Because the wall remained structurally repairable, our team recommended reinforcing it with 19 carbon fiber straps to stabilize the affected wall and help prevent the crack from worsening over time.
Solution: Carbon Fiber Straps Installation
Once our assessment identified the cause of the foundation wall cracks, we developed a repair plan that addressed both the existing damage and the conditions contributing to it. Instead of recommending a full wall replacement, we reinforced the affected wall with an engineered carbon fiber strap system consisting of 19 straps designed to stabilize the crack and help resist future movement.
Here’s exactly how we completed this foundation wall crack repair in Winchester, VA.

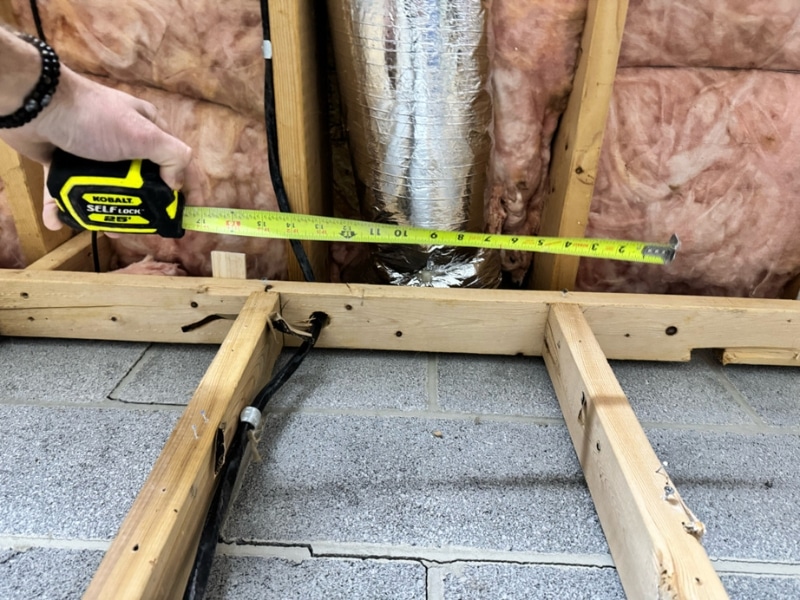

Step 1: Inspecting and Measuring the Foundation Wall
Before any repairs began, our team inspected the foundation inside and out to document the wall’s condition and gather field measurements. We evaluated visible cracks, measured the foundation wall to support the engineered repair plan, and inspected exterior drainage, including a short downspout discharging roof water too close to the foundation.

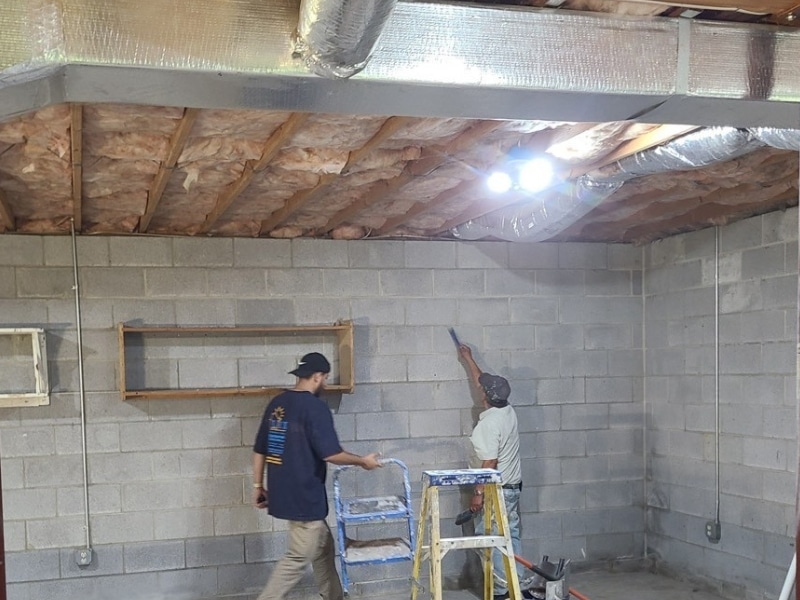

Step 2: Preparing the Foundation Wall for Carbon Fiber Installation
Our team prepared the designated sections of the foundation wall where the carbon fiber straps would be installed. Existing paint, loose material, and debris were removed from the concrete block surface, and the mortar joints were prepared to create a clean, stable bonding surface for the carbon fiber reinforcement system.

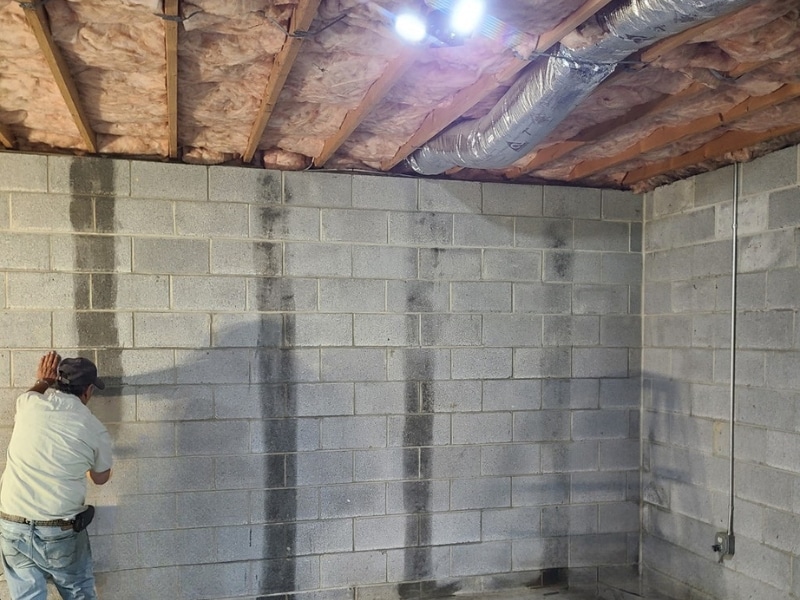

Step 3: Applying Structural Epoxy to the Reinforcement Areas
With the wall fully prepared, our team applied high-strength structural epoxy to each location identified in the engineered repair plan. The epoxy was spread evenly across the prepared surface to create the bonding layer required before installing the carbon fiber straps.

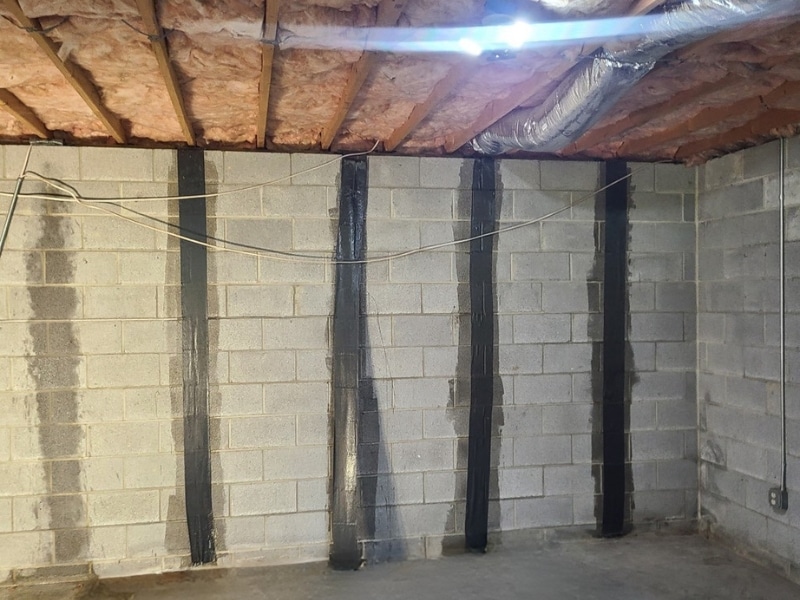

Step 4: Installing 19 Carbon Fiber Straps
After the epoxy was applied, 19 carbon fiber straps were installed at the designated reinforcement locations. Each strap was carefully embedded into the epoxy and bonded directly to the concrete block wall in accordance with the engineered repair plan, creating a permanent reinforcement system designed to resist future wall movement.

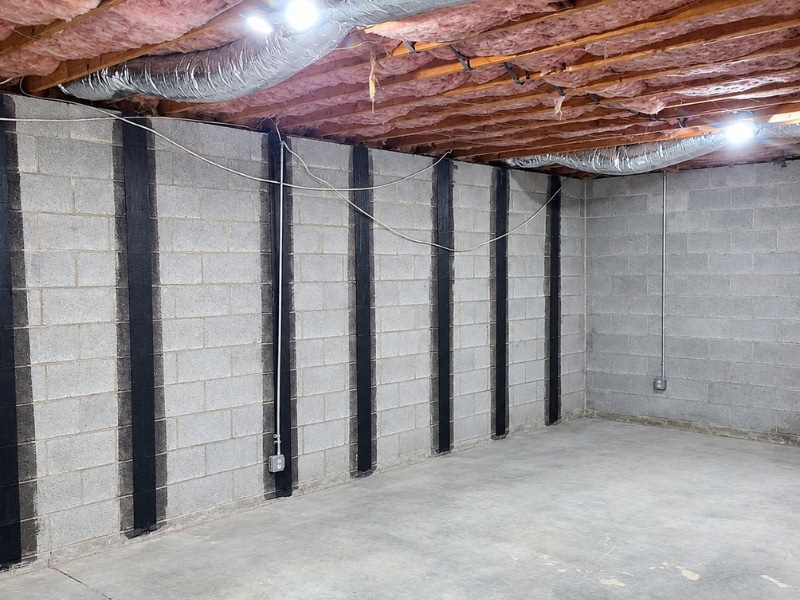

Step 5: Final Inspection and Project Completion
Before completing the project, our team inspected every carbon fiber strap to verify the reinforcement system had been installed according to the engineered repair specifications. The work area was cleaned, leaving the homeowner with a stabilized foundation wall that could be painted to match the surrounding surface if desired.

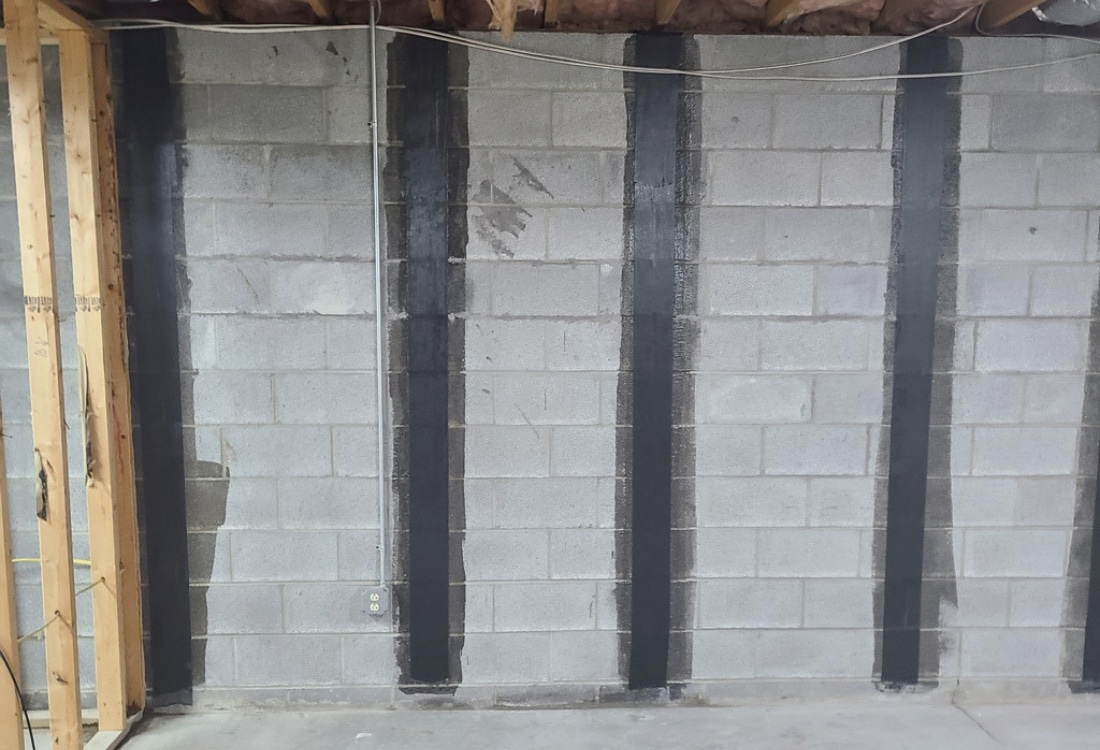

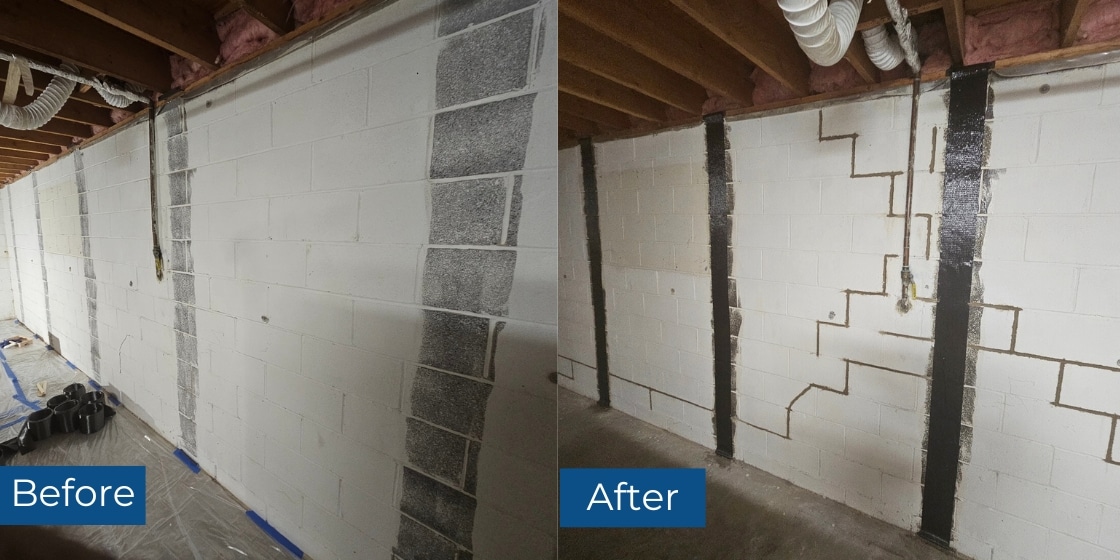

The Result: A Stabilized Foundation Wall for This Winchester, VA Home
With the project complete, Jessica and Herbert’s foundation wall was reinforced using an engineered carbon fiber system, allowing the home purchase to move forward with greater confidence.
The results:
✅ The foundation wall was reinforced with 19 carbon fiber straps to help resist additional horizontal movement and reduce the risk of the existing crack continuing to worsen.
✅ The wall remained intact without requiring a full foundation wall replacement, preserving the home’s existing structure while addressing the underlying problem.
✅ The repaired section of the foundation wall was stabilized with a permanent carbon fiber reinforcement system designed to help resist future wall movement.
✅ The completed reinforcement system provided a clean, organized appearance throughout the repaired foundation wall, with the carbon fiber straps ready to be painted if the homeowners choose.
✅ The structural concerns identified during the home foundation inspection were professionally addressed before the purchase of the home was finalized.
Foundation wall cracks are often an early warning sign of structural movement. Choosing to repair cracks in foundation walls early helps stabilize the affected area before the damage spreads and more extensive structural repairs become necessary.
