The Challenge:
Foundation Settling Due to Water Damage

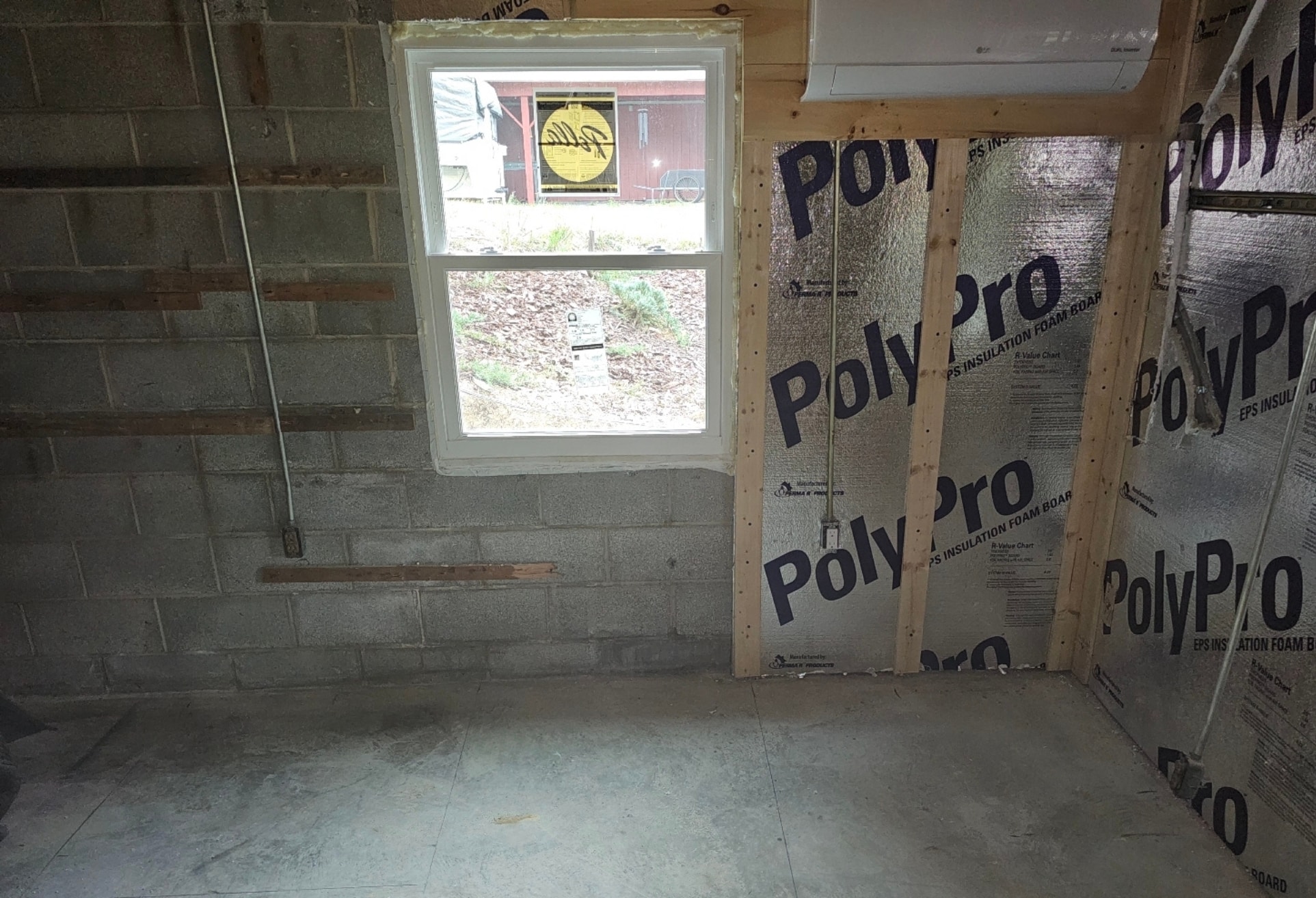

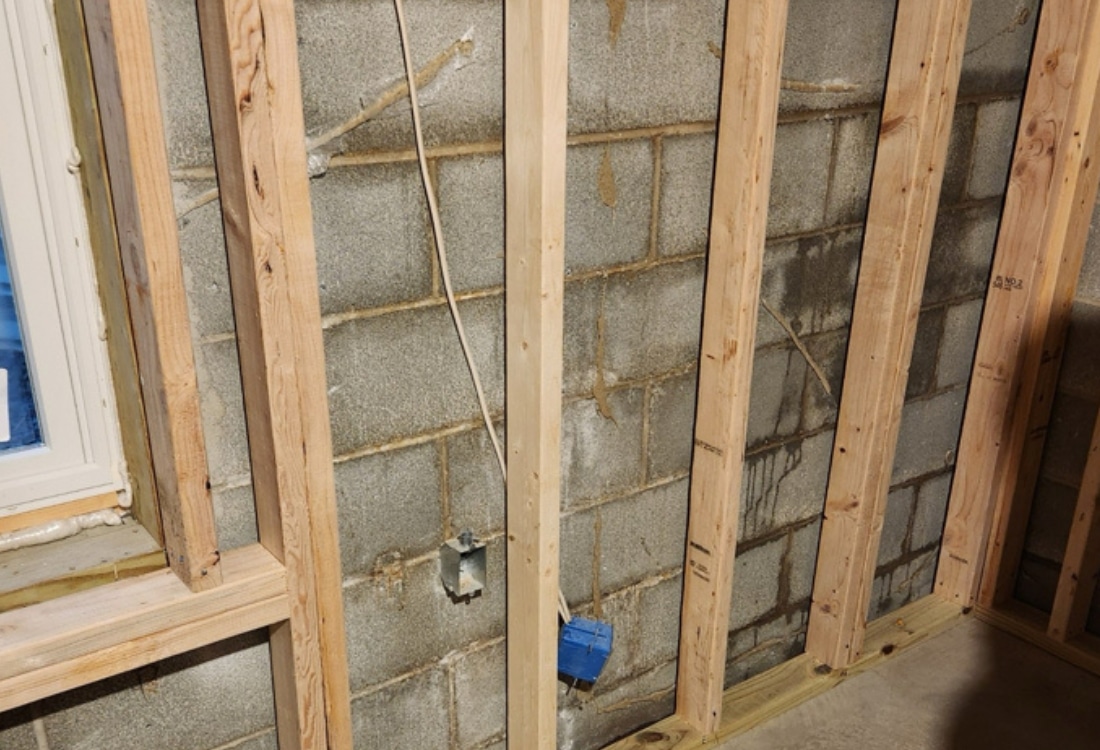

In Fort Valley, VA, the Rhoades family’s basement showed signs of settling caused by ongoing water damage, which had weakened the foundation over time. The foundation issues created structural concerns that needed immediate attention to prevent further settling and instability.
LUX Foundation Solutions assessed the site and recommended a foundation piering installation to stabilize the foundation and enhance the waterproofing results.
Solution: Stabilizing the Foundation with Push Piers
To address the foundation settling at the Rhoades family home, our team at LUX Foundation Solutions employed a systematic foundation piering solution. We aimed to stabilize the structure and transfer the weight to stable soil layers below by installing push piers beneath the basement’s footing.
Here’s a breakdown of the steps we followed:

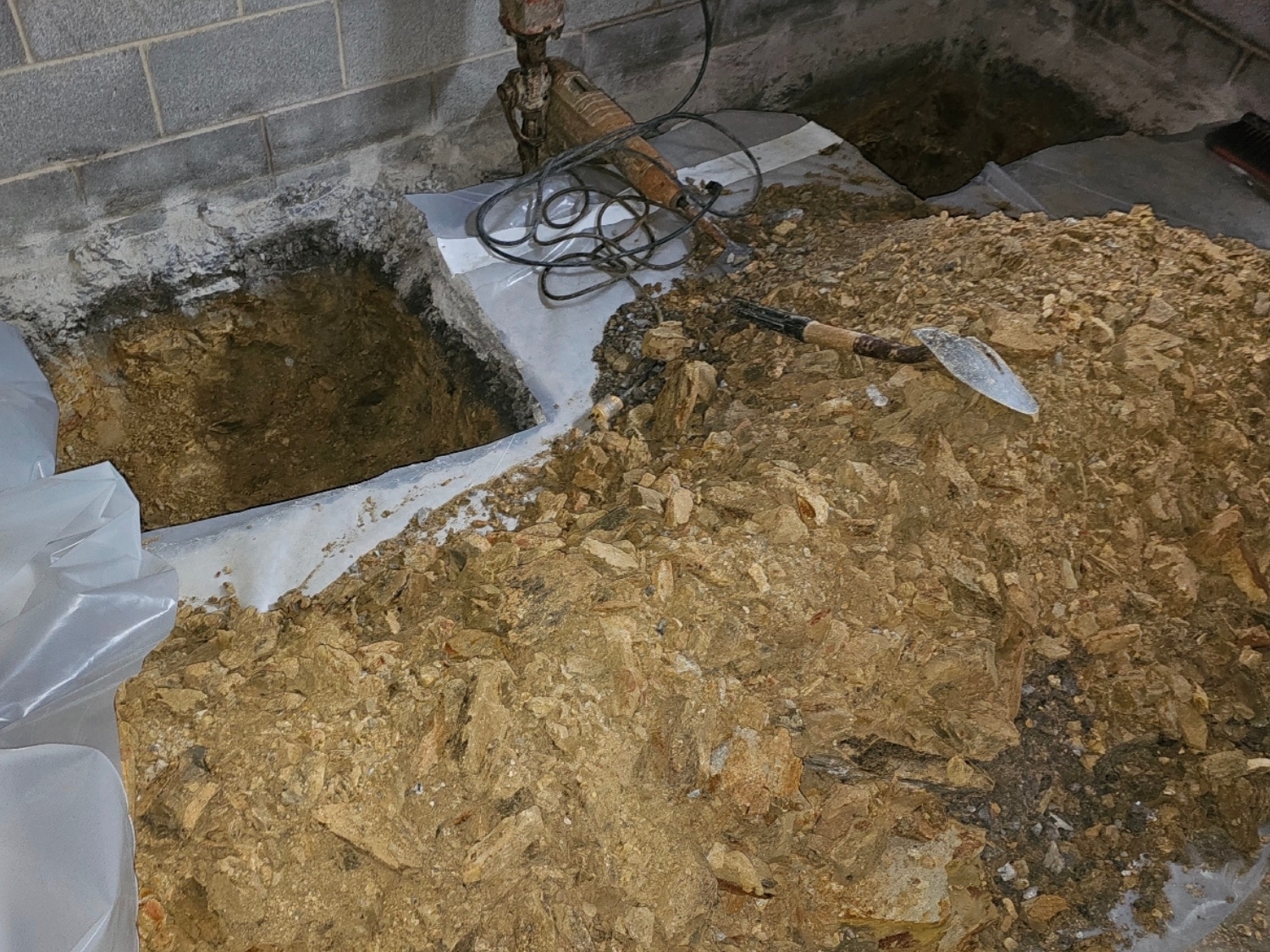

Step 1: Site Preparation and Excavation
Our team began by carefully excavating around the basement’s footing to prepare for the push pier installation. We ensured minimal disturbance to the surrounding area and safeguarded the home’s existing waterproofing system.

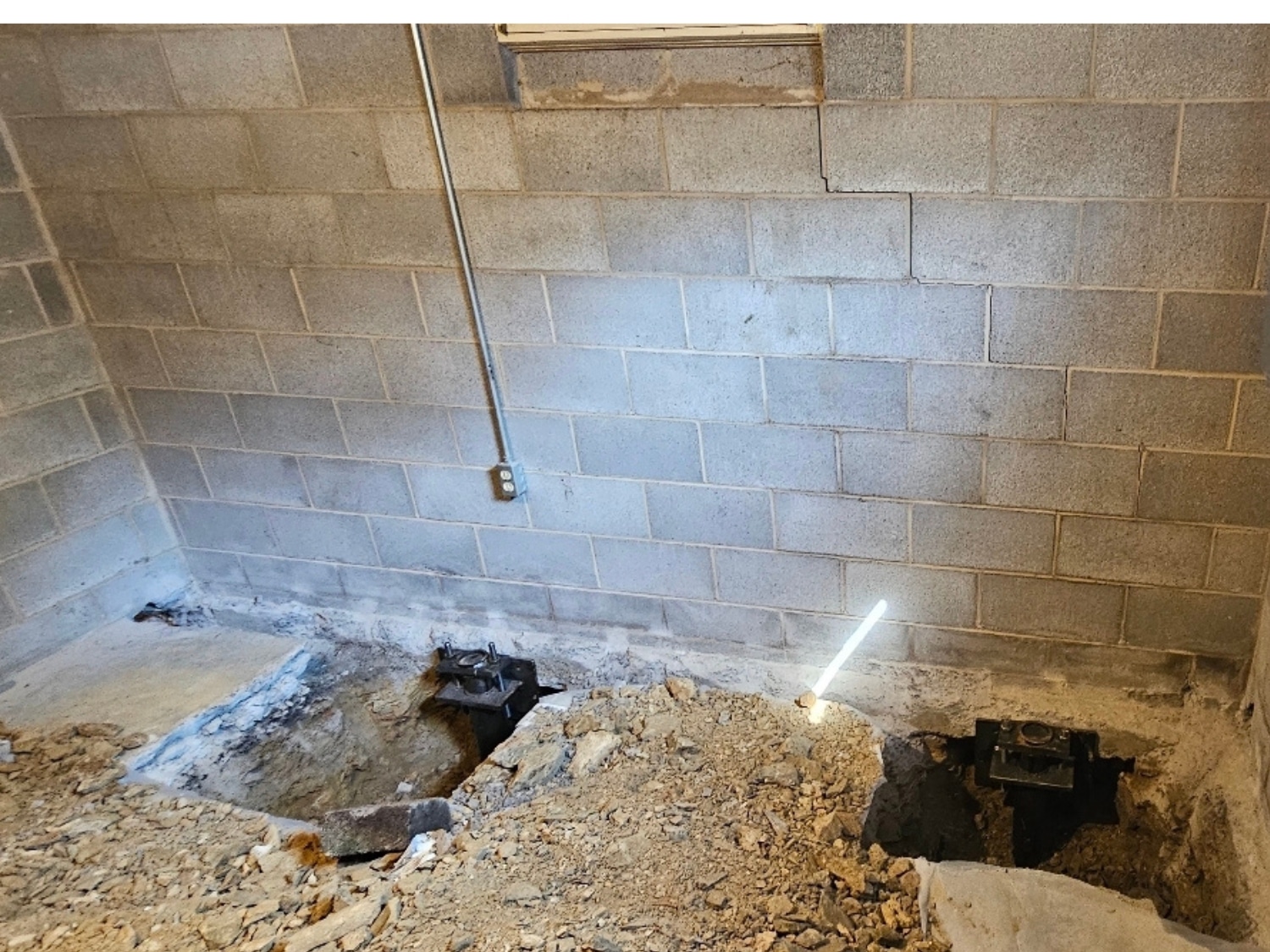

Step 2: Installing Seven Push Piers Under the Footing
Working according to engineering and manufacturer specifications, we installed seven standard-duty push piers beneath the basement’s footing. Each pier was precisely positioned to bear the load of water-damaged foundation, transferring the weight to stable soil layers below.

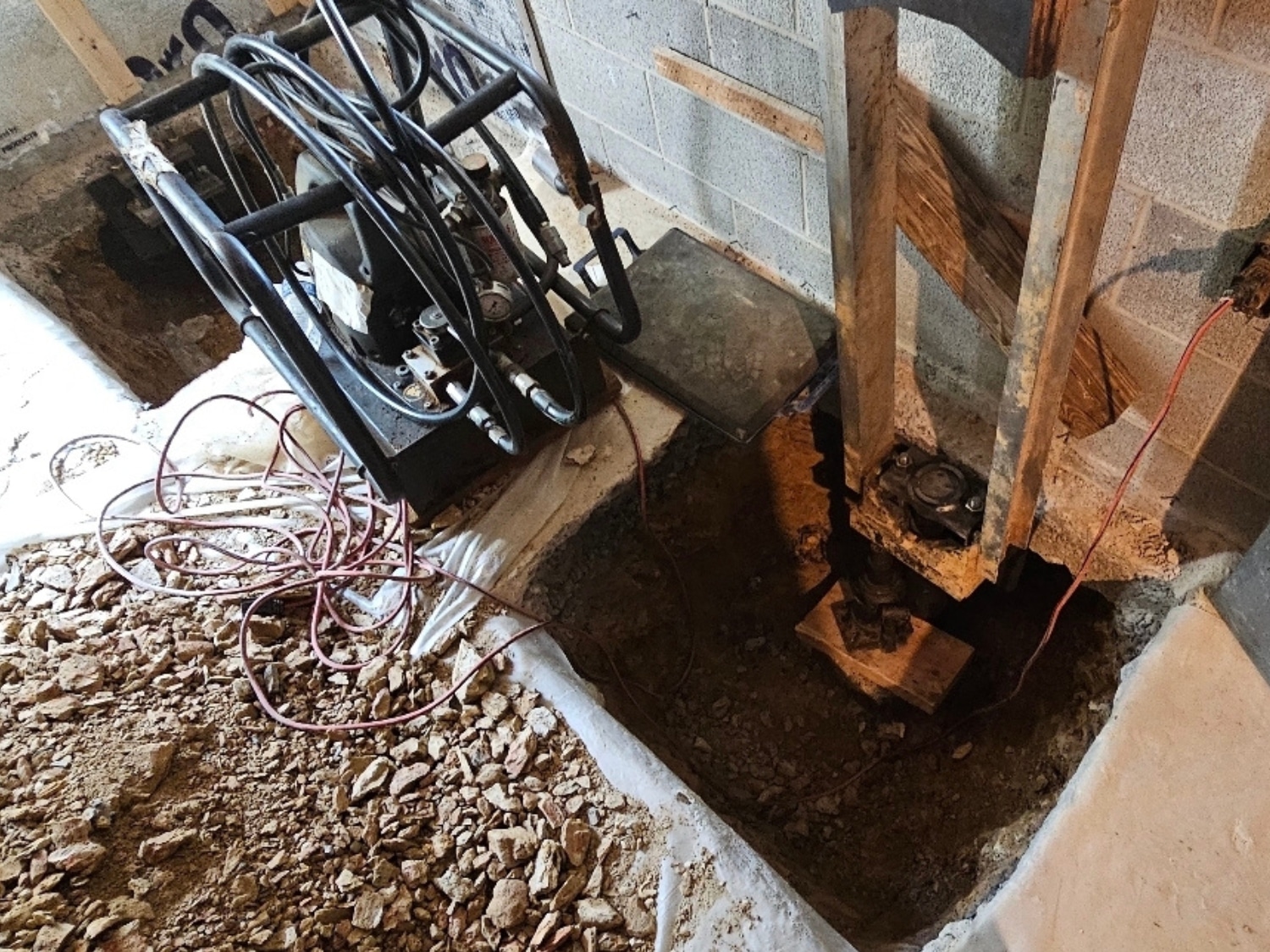

Step 3: Transferring the Foundation Load to Stable Soil
After securing each push pier, we carefully adjusted the structure’s load onto the piers. Our team worked to lift the foundation as much as possible, though the primary goal remained to stabilize the foundation. Any lift achieved enhances the home’s overall stability.

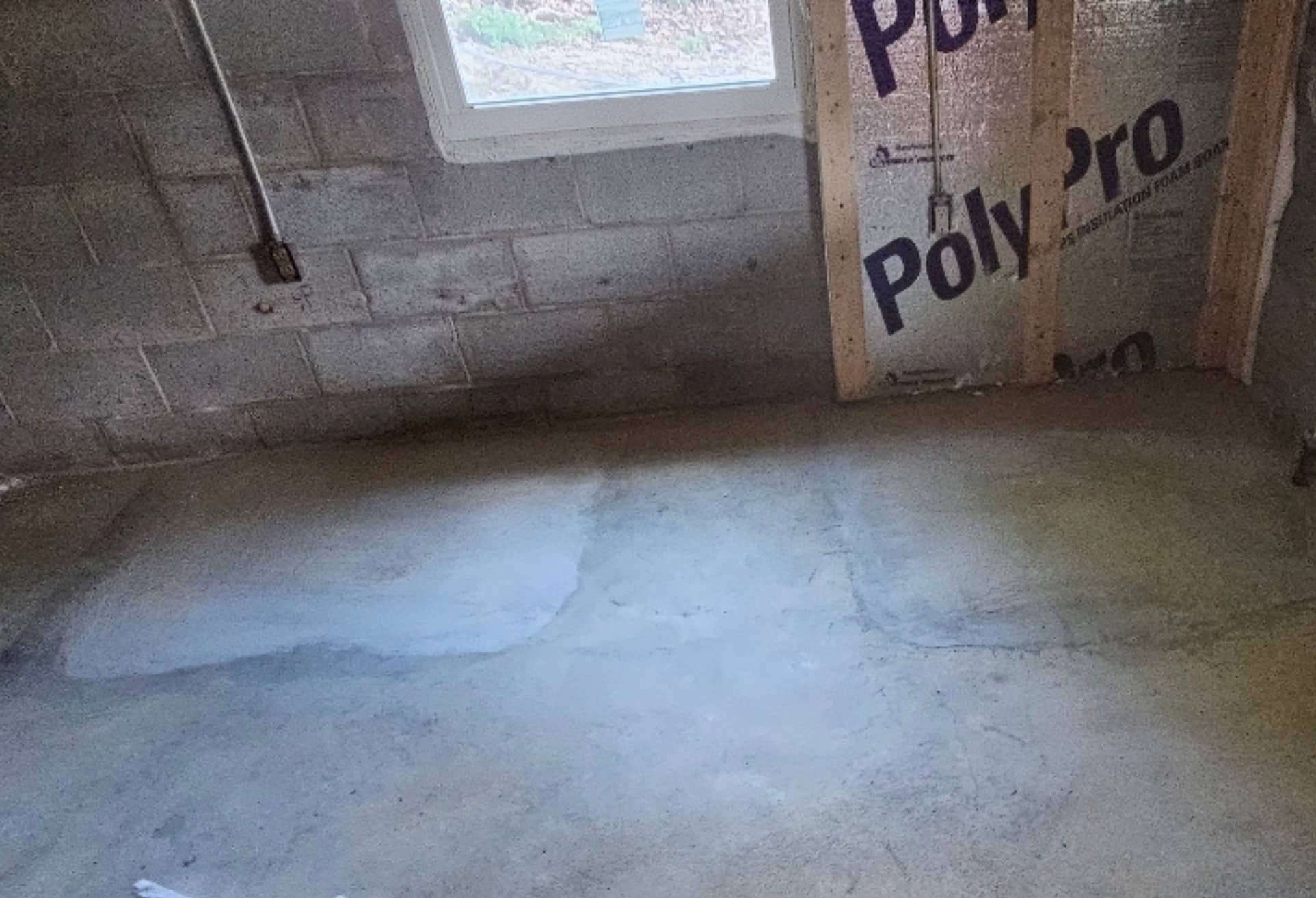

Step 4: Floor Restoration and Site Cleanup
Once the piers were fully set, our team backfilled the excavated areas to secure the foundation. Then, it restored the basement floor to its original condition, ensuring a smooth, seamless finish.
The Outcome: Long-Term Foundation Stability and Structural Security
With the basement foundation support completed, the Rhoades family’s foundation is now securely stabilized against future settling. This solution not only fortified the home’s structure but also reinforced the waterproofing measures, delivering lasting protection from both water damage and structural issues. The family can rest assured that their home is stable, safe, and prepared to handle potential soil shifts.
Protect Your Home with Professional Foundation Piering Solutions
By investing in foundation piering, the Rhoades family has ensured their home is well-protected from the effects of settling and water damage. If you see similar signs of foundation settling or water damage in your home, contact LUX Foundation Solutions for a free, no-obligation inspection. Our team offers detailed proposals with customized stabilization plans to suit your home’s needs. Contact us at 540-508-8587 or complete our quick estimate form to schedule an inspection today.
